P22T-0R5G18G-60-T-SFF-OPT7G8G Preliminary
High Speed SP22T Absorptive Solid-State Switch

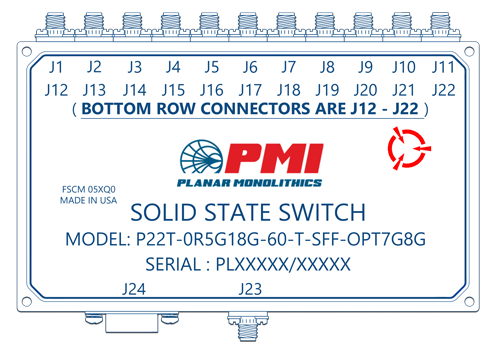

PMI Model P22T-0R5G18G-60-T-SFF-OPT7G8G is a 7 to 8 GHz, single pole, twenty-two-way, high speed, absorptive solid-state switch that offers low insertion loss and high isolation. Supplied in a compact housing measuring only 6.0" x 3.5" x 1.0" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP22T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 7 to 8 |
| Frequency Min (GHz): | 7 |
| Frequency Max (GHz): | 8 |
| Insertion Loss (dB): | 8 dB Max, 7 dB Typ |
| Insertion Loss - Typ (dB): | 7 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 100 ns Max (50% TTL to 90% RF & 50% TTL to 10% RF) |
| Switching Speed - Typ: | 100 ns |
| Input Power: | 20 dBm CW Max (Operating) |
| Control Signal: | 4-Bit Decoded TTL - See Product Feature |
| Power Supply: | +5 VDC @ 330 mA Nom, -12 VDC @ 150 mA Nom |
| Power & Control Connector: | 9 Pin Sub D Male, (Mating connector supplied with unit |
| Connectors: | SMA Female |
| Size: | 6.0" x 3.5" x 1.0" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
