P24T-0R5G18G-60-T-SFF-OPT100M18 Preliminary
High-Speed SP24T Absorptive Switch

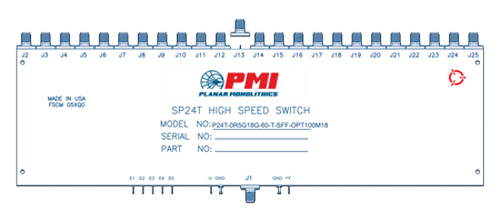

PMI Model P24T-0R5G18G-60-T-SFF-OPT100M18 is a high speed, single pole, twenty-four throw, absorptive switch capable of switching within 100 ns that has operating frequency range of 0.1 to 18 GHz with over 60 dB of isolation. Package size is 12.0" x 3.5" x 0.65" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP24T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.1 to 18 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 8.5 dB Max |
| Isolation (dB): | 60 dB Min |
| Switching Speed: | 100 ns Max |
| VSWR: | 2.0:1 Max |
| Input Power: | 20 dBm CW Max |
| Power Supply: | +5 VDC @ 1.2 A Nom, -5 VDC @ 100 mA Nom |
| Control Signal: | 5 Bit - TTL Logic - See Product Feature |
| Power / Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 12.0" x 3.5" x 0.65" |
| Finish: | Painted Gray |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +95 ºC |
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
