P24T-0R5G18G-60-T-SFF-OPT26 Preliminary
High Speed SP24T Absorptive Switch

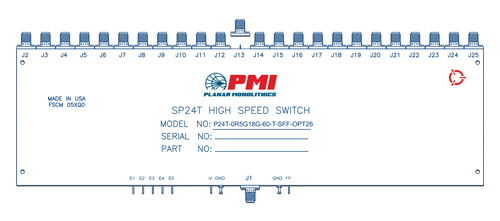

PMI Model P24T-0R5G18G-60-T-SFF-OT26 is a high speed, single pole, twenty-four throw, absorptive switch capable of switching within 100 ns that operates over the frequency range of 2 to 6 GHz with over 90 dB of isolation. Housing measures 12.0" x 3.5" x 0.65" with 9 pin micro-D connector for power and control and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP24T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 2 to 6 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 6 |
| Insertion Loss (dB): | 5 dB Max |
| Insertion Loss - Typ (dB): | 5 dB |
| Isolation (dB): | 90 dB Min |
| Isolation - Typ (dB): | 90 dB |
| Switching Speed: | 100 ns Max |
| Switching Speed - Typ: | 100 ns |
| Input Power: | 20 dBm CW |
| Control Signal: | 5 Bit - Decoded TTL - See Product Feature |
| Power / Control Connector: | 9 Pin Micro-D |
| Connectors: | SMA Female |
| Size: | 12.0" x 3.5" x 0.65" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +95 ºC |
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
