P24T-10G31G-90-T-512-SFF-DEC Preliminary
SP24T Absorptive Switch

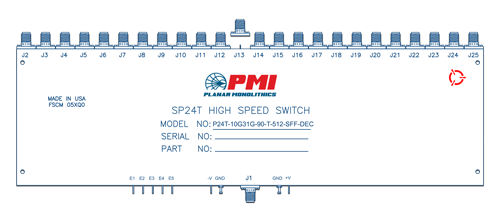

PMI Model P24T-10G31G-90-T-512-SFF-DEC is a single pole, twenty-four throw absorptive switch operates over the 10 to 31 GHz frequency range and designed to maintain low insertion loss, high isolation, and fast switching speed. Housing measures 12.0" x 3.5" x 0.65" with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP24T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 10 to 31 |
| Frequency Min (GHz): | 10 |
| Frequency Max (GHz): | 31 |
| Insertion Loss (dB): | 13 dB Goal, 15 dB Max |
| Isolation (dB): | 90 dB Min |
| Switching Speed: | 100 ns Max |
| VSWR: | 2.0:1 Max |
| Input Power: | 23 dBm CW Max |
| Power Supply: | +5 VDC @ 1.2 mA Nom -5 VDC @ 250 mA Nom |
| Control Signal: | 5 Bit - TTL Logic - See Product Feature |
| Power / Control Connector: | Solder Pins |
| Connectors: | 2.92mm Female |
| Size: | 12.0" x 3.5" x 0.65" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +95 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202F, METHOD 107 |
