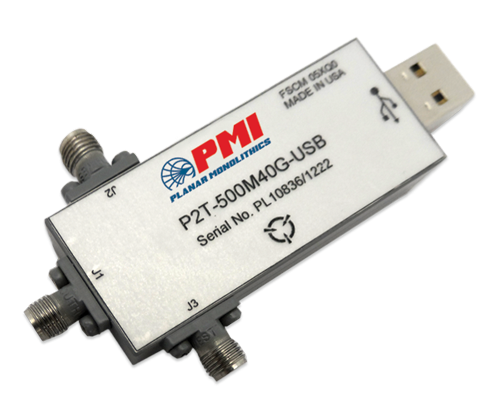

P2T-500M40G-USB *

USB SPDT Absorptive Switch

Buy Now

PMI Model No.P2T-500M40G-USB is a state-of-the-art SPDT, Absorptive switch that operates from 500 MHz to 40 GHz.  This switch is powered and controlled via USB 2.0.  This model offers low insertion loss of 6.0 dB maximum and a minimum isolation of 60 dB.  The package size is 2.25" x 1.00" x 0.33".

Product Specifications

General Parameters:
Status: Active
Reflective / Absorptive: Absorptive
Operating Input Power (dBm): 20
Power & Control Type: USB 2.0
Features: Low Insertion Loss, High isolation, USB 2.0 Controlled, Ultra-Broad Band Operation
Frequency: 0.5 to 40.0 GHz
Isolation: 60 dB Min - Measured 65.10 dB
Insertion Loss: 6.0 dB Max - Measured 5.17 dB
VSWR In/Out: 2.5:1 Typ - Measured 2.39:1
Input Power: +20 dBm CW Max
Survival Power: 1 Watt Peak, 1 µs
Connectors In/Out: 2.92mm (F)
Power and Control Connector: USB Type A Plug
Size: 2.25" x 1.00" x 0.33"
Driverless Installation: Simply run the PMI provided application from any Windows computer, * Tested for compatibility on Windows XP and Windows 7
No External Power Supplies: Powered through USB
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC
Non-Operating: -55 ºC to +125 ºC
