P36T-13G16G-30R-SMP Preliminary
SP36T Reflective Switch

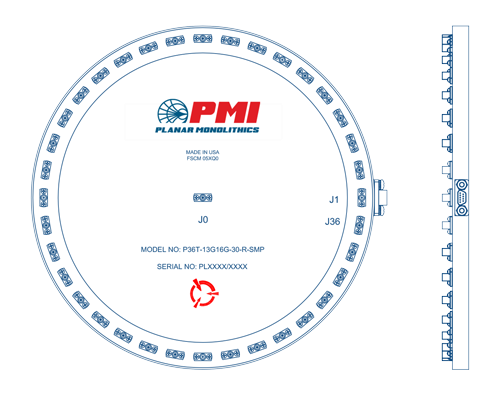

PMI Model P36T-13G16G-30R-SMP is a 13 to 16 GHz, SP36T Reflective Switch that features low insertion loss, high isolation, and fast switching in a circular package. This model incorporates a TTL compatible driver for ease of system integration with a unit size of Ø6.929" x 0.585" with a 9 Pin Micro-D connector for power/control and SMP male connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP36T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 13 to 16 |
| Frequency Min (GHz): | 13 |
| Frequency Max (GHz): | 16 |
| Insertion Loss (dB): | 2.5 dB Max |
| Insertion Loss - Typ (dB): | 2.5 dB |
| Isolation (dB): | 30 dB Typ |
| Isolation - Typ (dB): | 30 dB |
| Switching Speed: | 150 ns Max |
| Switching Speed - Typ: | 150 ns |
| Input Power: | 23 dBm CW Max |
| Control Signal: | TTL - 6 Bit Logic |
| Control: | TTL |
| Power Supply: | +5 VDC @ 750 mA Max, -5 VDC @ 200 mA Max |
| Power & Control Connector: | 9 Pin Micro-D Male |
| Connectors: | SMP Male |
| Size: | Ø6.929" x 0.585" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
