P6VA-2VO-1VG-20M Preliminary

6 Channel, 20 MHz Video Amplifier

  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/P6VA_2VO_1VG_20M_82911813_400.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/Capture_70132057_800.PNG
Product Feature

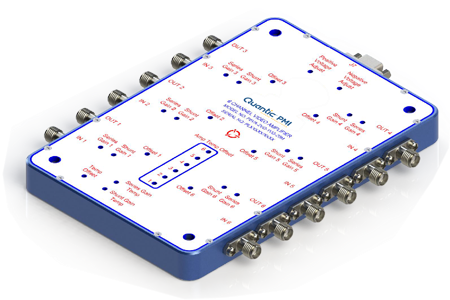

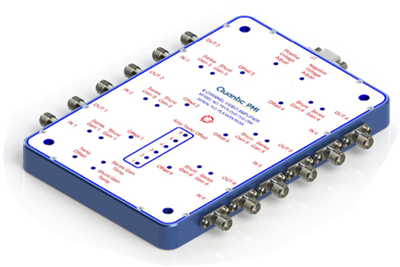

Quantic PMI Model No. P6VA-2VO-1VG-20M is a 6 Channel, 20 MHz Video Amplifier with individual gain and offset adjustments. It features temperature compensation, ±2 V video offset adjustment, and ±1 V video gain adjustment in a slimline package measuring 5.25" x 3.5" x 0.5" with SMA connectors.

Product Specifications

General Parameters:
Type: SDLVA
Status: Preliminary
Frequency Range: 0.02 GHz
Frequency Min: 0.02 GHz
Frequency Max: 0.02 GHz

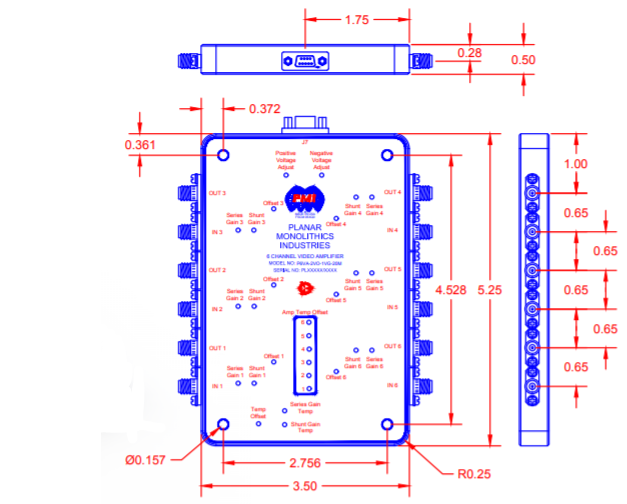

Size: 5.25" x 3.5" x 0.5"
Output Voltage: ±2 V @ Max Gain
Power Supply: +8 to +15 V @ 100 mA Max. No Load,
-8 to -15 V @ 100 mA Max. No Load
Finish: Painted Blue
Video Bandwidth: 20 MHz Typ
Power/ Logic Connector: 9 Pin Micro-D MDM-9PSP or Equiv.
Connectors: SMA (F)
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
