P9T-24G24D5G-60-T-55-292FF
Preliminary
High Speed, SP9T, Absorptive Switch

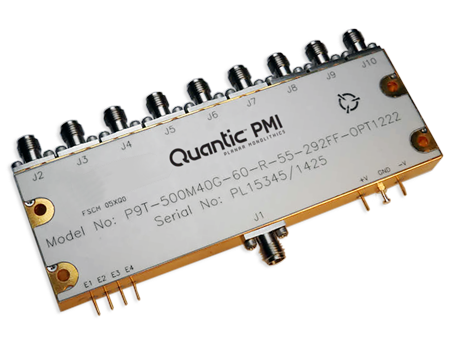

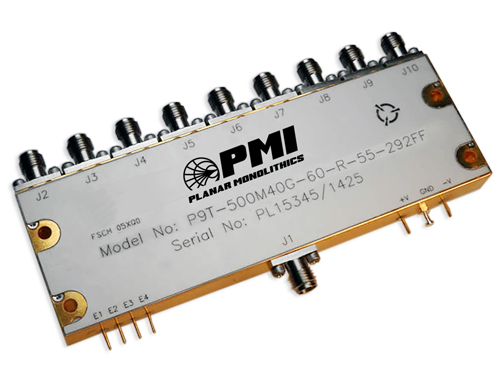

Quantic PMI Model P9T-24G24D5G-60-T-55-292FF is a high speed, single pole, nine throw, absorptive switch capable of switching within 100 ns that has a frequency range of 24 to 24.5 GHz with over 60 dB of isolation. Housing is gold plated and measures 4.5" x 1.5" x 0.4" with 2.92mm female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Configuration: | SP9T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 24 to 24.5 |
|---|
| Frequency Min (GHz): | 24 |
|---|
| Frequency Max (GHz): | 24.5 |
|---|
| Insertion Loss (dB): | 6.5 dB Max |
|---|
| Isolation (dB): | 60 dB Min |
|---|
| Switching Speed: | 100 ns Typ |
|---|
| Input Power: | 20 dBm CW Max |
|---|
| Control Signal: | 4-Line Decoded TTL |
|---|
| Power Supply: | +5 VDC @ 450 mA Max
-5 VDC @ 75 mA Max |
|---|
| Connectors: | 2.92mm Female |
|---|
| Size: | 4.5" x 1.5" x 0.4" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
