PA-218-25G-6NF-34PS-24V-SFF Active

High-Power Amplifier

  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/Screenshot_2021_02_22_091614_63393022_800.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/PA_218_25G_6NF_34PS_24V_SFF_6903877_800.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/PA_218_25G_6NF_34PS_24V_SFF_6903877_800.png
Product Feature

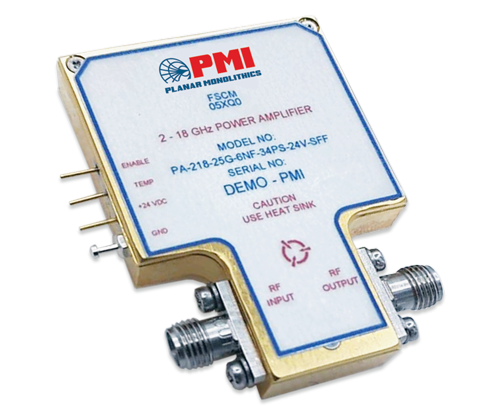

PMI Model PA-218-25G-6NF-34PS-24V-SFF is a High-Power Amplifier with operating frequency of 2 to 18 GHz, 25 dB Gain and Saturated output power of 34 dBm.  Package size is 1.50" x 2.00" x 0.40" and has SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 2 to 18 GHz (Operates up to 20 GHz)
Input Power: +27 dBm Max
Saturation Output Power: 34 dBm Typ
Gain: 25 dB Typ
21 dB Min
27 dB Max
DC Supply Voltage: +24 VDC
Current Supply: 700 mA at Psat
Finish: Gold Plated
Output Power at 1 dB Compression: 30 dBm Typ
Noise Figure: 5 dB Typ / 8 dB Max
Supply Current Quiescent (No RF): 440 mA
Size (Excluding Connectors): 1.50" x 2.00" x 0.40"
DC Connectors: SMA Female
VSWR: 2.0:1 Max
