PA-218-45-5-10W-24V-SFF Active
10 W Power Amplifier
Additional Documents

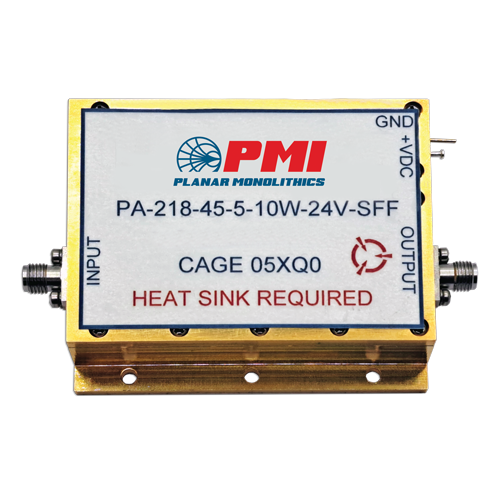

PMI Model PA-218-45-5-10W-24V-SFF is a 2 to 18 GHz solid state power amplifier (SSPA) featuring 38 to 48 dB gain, ±2.5 dB gain flatness, and minimum saturated output power of 10 W. This product's package size is 2.88" x 2.5" x 0.67" with removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Gain (dB): | 48 dB Max 38 dB Min |
| Psat: | 10 W Min |
| Input Power: | 23 dBm CW Max |
| Input VSWR: | 2.0:1 Max |
| Output VSWR: | 2.2:1 Max |
| Noise Figure: | 5.5 dB Max |
| Gain Flatness: | ±2.5 dB Max |
| Current Supply: | 3.9 A Max (No RF Signal) 4.5 A Max (Psat) |
| DC Supply Voltage: | +24 VDC |
| DC Connectors: | Solder Pin |
| RF Connectors In/Out: | SMA Female |
| Size (Excluding Connectors): | 2.88" x 2.5" x 0.67" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | 3A001.b.4.a |
| Environmental Ratings: | |
| Operating Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
