PA-2G4G-53-5-43-SFF Preliminary

High Power Amplifier

PA-2G4G-53-5-43-SFF
Product Feature

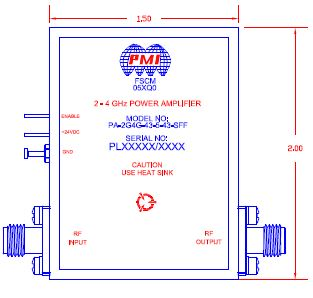

Quantic PMI Model PA-2G4G-53-5-43-SFF is a high power amplifier with operating frequency of 2 to 4 GHz, 53 dB gain and saturated output power of 43 dBm. Package size is 1.50" x 2.00" x 0.50" and has SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min (GHz): 2
Frequency Max (GHz): 4
Gain (dB): 53 dB Min
Psat: 43 dBm Min
Input Power: 20 dBm Max
VSWR: 2.5:1 Max
Noise Figure: 5 dB Max
DC Supply Voltage: +24 VDC
RF Connectors In/Out: SMA (F)
Size (Excluding Connectors): 1.50" x 2.00" x 0.50"
Finish: Gold Plated
Weight: 2.0 oz Max
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -55 °C to +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
