PA-2G6G-50-45-SFF Active
Power Amplifier - Rack Mountable

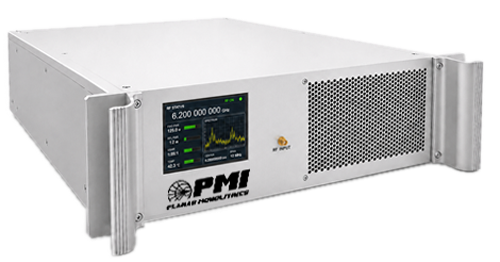

PMI Model PA-2G6G-50-45-SFF is a 2 to 6 GHz power amplifier with 45 dBm output power and 30 to 60 dB adjustable gain. Unit includes front panel status display and comes in a 19" 3U rack-mounted form factor with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 6 |
| Gain (dB): | 30 to 60 dB (Adjustable) |
| VSWR: | 2.0:1 Typ |
| Gain Flatness: | ±1.5 dB Typ |
| Power Output: | 45 dBm Typ |
| RF Connectors In/Out: | SMA Female |
| Power Supply: | 110 to 240 VAC |
| Environmental Ratings: | |
| Operating Temperature: | -25 ˚C to +85 ˚C |
| Non-Operating Temperature: | -40 ˚C to +125 ˚C |
