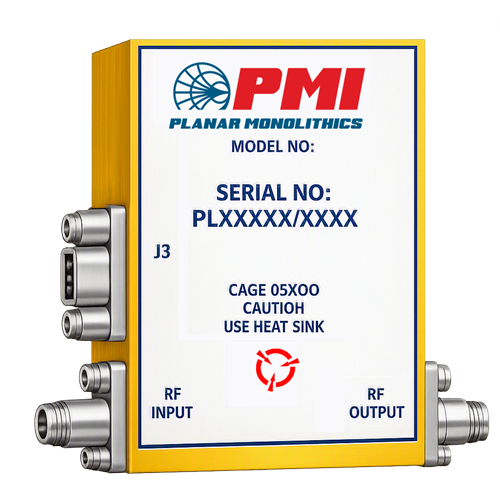

PA-3436-30-10W-24V-292FF Active
10 W Power Amplifier
PMI Model PA-3436-30-10W-24V-292FF is a 34 to 36 GHz solid-state power amplifier (SSPA) featuring 30 dB of gain, PSAT of 40 dBm typical, and handles an input power of 23 dBm maximum. Equipped with a 9-pin Micro-D female connector that provides amplifier enable control, an analog temperature sensor output, and a TTL overtemperature status signal. Housing size is 1.5" x 2.5" x 1.0" with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Min (GHz): | 34 |
| Frequency Max (GHz): | 36 |
| Gain (dB): | 30 dB Min |
| Psat: | 40 dBm Typ |
| Input Power: | 23 dBm Max |
| DC Supply Voltage: | +24 VDC @ 1.5 A Typ |
| Control Voltage: | "1" = 3 V ON "0" = 0 V OFF |
| DC Connectors: | 9 Pin Micro-D |
| RF Connectors In/Out: | 2.92mm Female |
| Size (Excluding Connectors): | 1.5" x 2.5" x 1.0" |
| Finish: | Gold Plated |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +70 °C |
| Non-Operating Temperature: | -55 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103B COND. B |
| Shock: | MIL-STD-202, Method 213B COND. B |
| Vibration: | MIL-STD-202, Method 204D COND. B |
| Altitude: | MIL-STD-202, Method 105C COND. B |
| Temperature Cycle: | MIL-STD-202, Method 107D COND. A |
