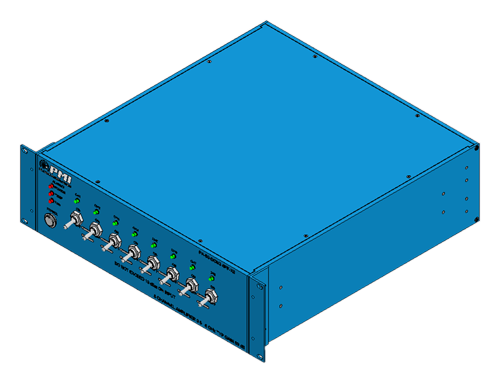

PA-50-1D1G5D1G-SFF-X8 Preliminary

8 Channel Power Amplifier

Product Feature
Additional Documents

PMI Model PA-50-1D1G5D1G-SFF-X8 is a chassis containing 16 Amplifiers with the ability to individually terminate unused input ports internally into 50 ohms. The minimum gain is 50 dB with an output PSAT of +33 dBm.

Product Specifications

General Parameters:
Status: Preliminary
Number of Channels: 8
Frequency Range: 0.5 to 6 GHz
Gain: 50 dB NOM
Maximum Input Power: 10 dBm
Power Supply: 100 - 240 VAC 50/60 Hz
Connectors: SMA Female

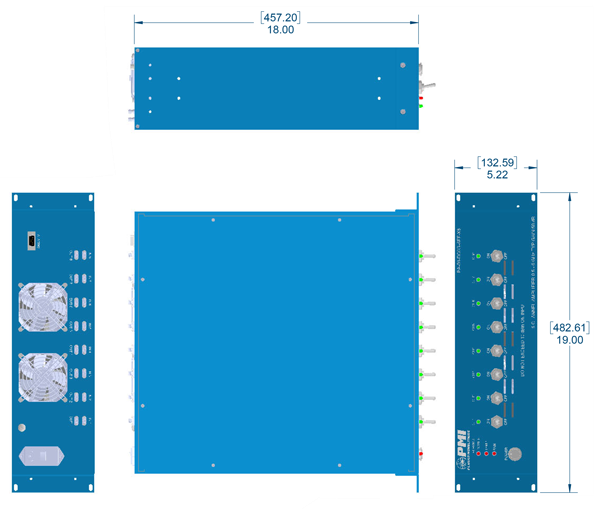

Size: 3U 19" Rackmount Chassis
20" Deep Max
Finish: Powder Coated Blue
PSAT: 33 dBm MIN
Environmental Ratings:
Temperature: +10 to +30 °C (Operating)
