PA-50-DC6G-SFF-X8 Preliminary
8 Channel Power Amplifier

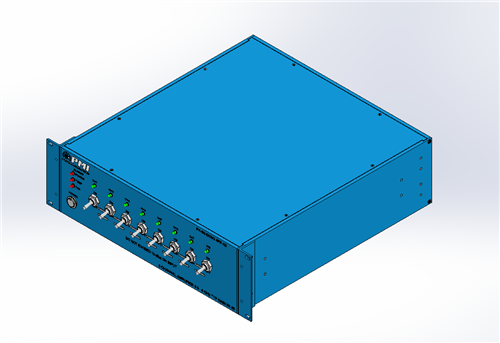

PMI Model PA-50-DC6G-SFF-X8 is a 8 Channel Power Amplifier containing 16 Amplifiers with the ability to individually terminate unused input ports internally into 50 ohms. This model covers the frequency range of 0.5 to 6 GHz with a gain of 50 dB and output P1dB of 33 dBm. This amplifier is housed in a 3U 19" rack-mount chassis with manual switch control on the front panel, SMA female connectors on the rear panel, and a 100 to 240 VAC 50/60 Hz power input.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Product Description: | PMI Model PA-50-DC6G-SFF-X8 is a 8 Channel Power Amplifier containing 16 Amplifiers with the ability to individually terminate unused input ports internally into 50 ohms. This model covers the frequency range of 0.5 to 6 GHz with a gain of 50 dB and output P1dB of 33 dBm. This amplifier is housed in a 3U 19" rack-mount chassis with manual switch control on the front panel, SMA female connectors on the rear panel, and a 100 to 240 VAC 50/60 Hz power input. |
| Item No.: | 112 |
| Number of Channels: | 8 |
| Frequency Range: | 0.5 to 6 GHz |
| Gain: | 50 dB Nom |
| Maximum Input Power: | 10 dBm |
| Power Supply: | 100 - 240 VAC 50/60 Hz |
| Connectors: | SMA Female |

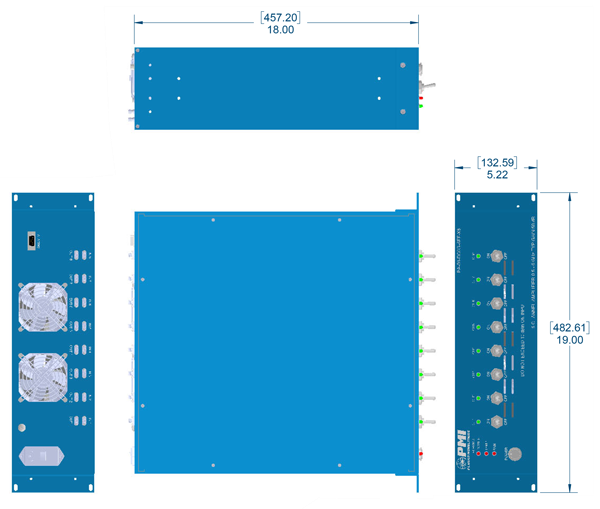

| Size: | 3U 19" Rackmount Chassis 20" Deep Max |
| Finish: | Powder Coated Blue |
| Export Classification (ECCN): | EAR99 |
| PSAT: | 33 dBm Min |
| Environmental Ratings: | |
| Temperature: | +10 °C to +30 °C (Operating) |
