PA-8G12G-43-5-40-SFF-HS Active
High Power Amplifier with Heatsink & Fan
Additional Documents

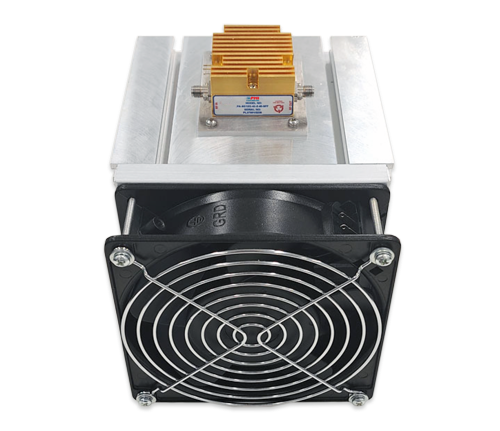

Quantic PMI Model PA-8G18G-43-5-40-SFF-HS is a high-power amplifier designed for a remarkably low noise figure of 3.5 dB and Psat of 40 dBm (10 W) over the 8 to12 GHz frequency range with a high gain of +43 dB and ±1.5 dB gain flatness. This model size is has removable SMA connectors and includes a heatsink and 120 Vac fan. Available without heatsink as PA-8G12G-43-5-40-SFF.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Min (GHz): | 8 |
| Frequency Max (GHz): | 12 |
| Gain (dB): | 43 dB Typ 40 dB Min |
| Psat: | 40 dBm (10 W) Typ |
| Input Power: | 20 dBm Max |
| VSWR: | 2.0:1 Max |
| Noise Figure: | 3.5 dB Typ 5.0 dB Max |
| Gain Flatness: | ±1.5 dB Max |
| DC Supply Voltage: | +22 VDC Max |
| RF Connectors In/Out: | SMA Female removable |
| Size (Excluding Connectors): | 4.92" x 6.295" x 6.7" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | 3A001.b.4.a |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -55 °C to +125 °C |
