PA-LPN-40-50M500M-5-35DBM-SFF-X8 Active
8 Channel Power Amplifier
Additional Documents

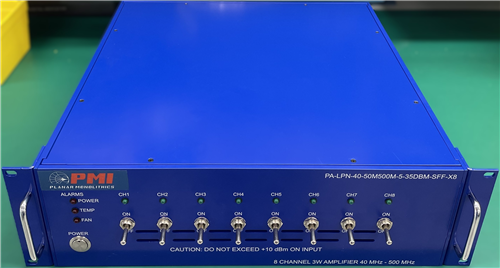

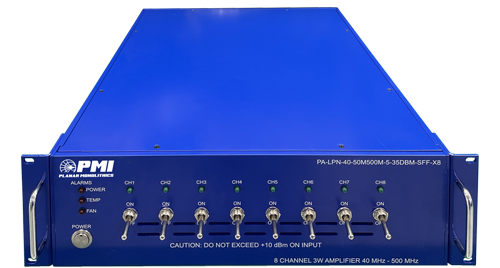

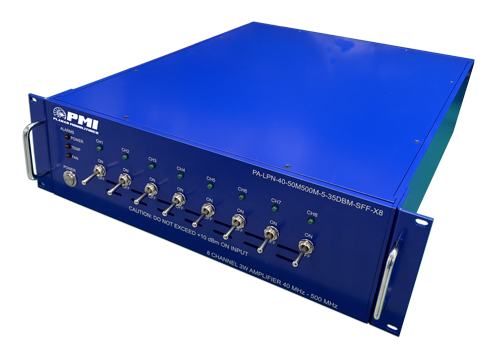

PMI Model PA-LPN-40-50M500M-5-35DBM-SFF-X8 is an 8 channel, low phase noise, power amplifier chassis with the ability to terminate unused ports into 50 ohms. This model covers the frequency range of 0.04 to 0.5 GHz with minimum gain of 40 dB and output P1dB of 33 dBm. This amplifier is housed in a 3U 19" rack-mount chassis with manual switch control on the front panel, SMA female connectors on the rear panel, and a 100 to 240 VAC 50/60 Hz power input.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Product Description: | PMI Model PA-LPN-40-50M500M-5-35DBM-SFF-X8 is an 8 channel, low phase noise, power amplifier chassis with the ability to terminate unused ports into 50 ohms. This model covers the frequency range of 0.04 to 0.5 GHz with minimum gain of 40 dB and output P1dB of 33 dBm. This amplifier is housed in a 3U 19" rack-mount chassis with manual switch control on the front panel, SMA female connectors on the rear panel, and a 100 to 240 VAC 50/60 Hz power input. |
| Item No.: | 111 |
| Number of Channels: | 8 |
| Frequency Range: | 0.04 to 0.5 GHz |
| Gain: | 38 dB Min 40 dB Typ |
| RF Output P1dB: | 32 dBm Min 33 dBm Typ |
| Maximum RF Input Power: | 10 dBm |
| Power Supply: | 100 - 240 VAC 50/60 Hz |
| Connectors: | SMA Female |
| Size: | 3U 19" Rackmount Chassis 20" Deep Max |
| Finish: | Powder Coated Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | +10 °C to +30 °C (Operating) |
