PBB-20-218-16-LCA Active
Low Noise Amplifier
Buy Now

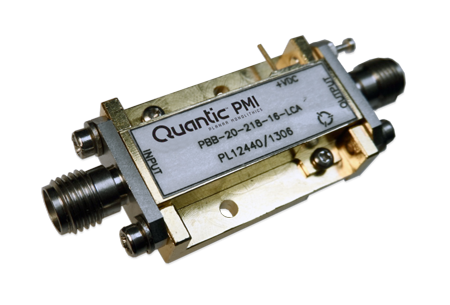

PMI Model PBB-20-218-16-LCA is a 2 to 18 GHz low noise amplifier featuring 20 dB of gain, ±2 dB gain flatness, and 4 dB noise figure. The amplifier requires +12 to +15 VDC and the maximum current draw is 180 mA quiescent. This amplifier is supplied in our PE2 housing that can be used as an SMA connectorized or surface mounted component.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Gain (dB): | 20 Typ |
| Gain Flatness (dB): | ±2 Max |
| Noise Figure (dB): | 4 Typ |
| OP1dB (dBm): | 14 Min |
| VSWR In/Out: | 2.0:1 Max |
| DC Voltage Supply: | +12 to +15 VDC |
| DC Current Draw: | 180 mA Iq Max |
| Max Input Power CW: | 18 dBm |
| Export Classification (ECCN): | EAR99 |
| Connectors: | SMA Female - Removable |
| Size: | 1.08" x 0.71" x 0.29" |
| Housing: | PE2 |
| Finish: | Gold Plated |
| Environmental Ratings: | |
| Temperature (Operating): | -20 ºC to +70 ºC |
| Temperature (Storage): | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
