PCAN-218-10-SFF-HC

Current Controlled Attenuator

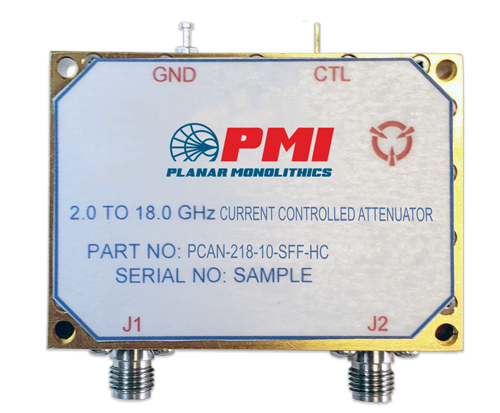

PMI Model No. PCAN-218-10-SFF-HC is a Current Controlled Attenuator operating over the 2.0 to 18.0 GHz frequency range. This model offers an insertion loss of 5 dB maximum while maintaining a maximum attenuation flatness of ±5.0 dB. This compact housing measures 2.25" x 1.60" x 0.60" and is outfitted with field removable SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min: 2.0 GHz
Frequency Max: 18.0 GHz
Insertion Loss: 5 dB Max
Attenuation: 10 dB Min
Attenuation Flatness: ±5.0 dB Max
Impedance: 50 Ohms
VSWR: 2.0:1 Max, 1.5:1 goal
Size: 2.25" x 1.60" x 0.60"
Finish: Gold Plated
RF Connectors: Field Removable SMA (F)
Power Supply: +0 to 1 VDC @ 20 mA Max
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -65 °C to +125 °C
Humidity: Up to 90%, Non-Condensing
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
