PCH-180-1G1R5G-SFF Active
180° Hybrid Coupler

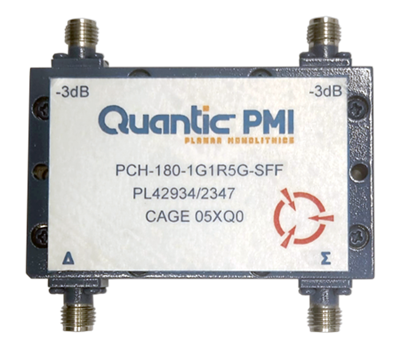

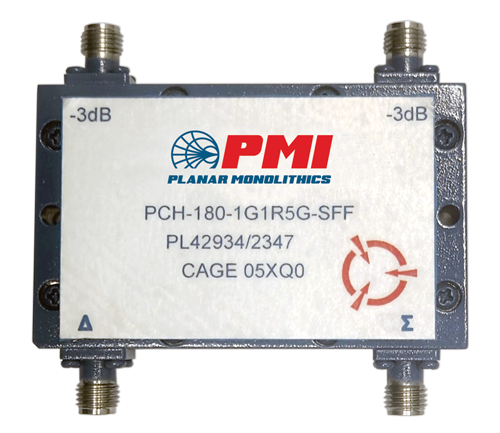

PMI Model PCH-180-1G1R5G-SFF is a 180° hybrid coupler that operates over the frequency range of 1.0 to 1.5 GHz which offers a maximum insertion loss of 0.35 dB and a minimum isolation of 20 dB. Housing size is 2.44" x 1.5" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 1 to 1.5 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 1.5 |
| Input Power (W): | 20 |
| Isolation (dB): | 20 Min |
| Amplitude Balance (dB): | ±0.3 Max |
| Phase Balance (°): | ±3 Max |
| Insertion Loss (dB): | 0.35 Max |
| VSWR: | 1.25:1 Max |
| Impedance: | 50 Ohm |
| Nominal Split: | 3.01 dB |
| Power Handling: | 20 W Max Average 1 KW Max Peak |
| Connector: | SMA Female |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | Up to 95%, Non-Condensing |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
