PD-10M1G-2-SFF Active
2 Way 0° Power Divider

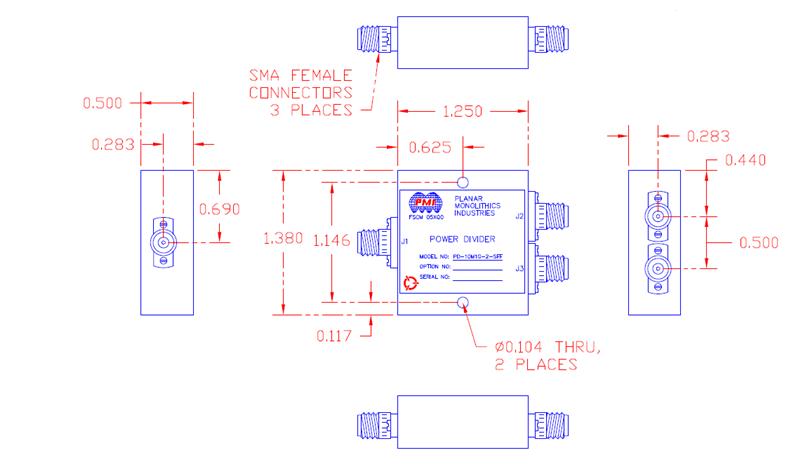

Quantic PMI Model PD-10M1G-2-SFF is a 0.01 to 1 GHz 2 Way, 0° Power Divider that has a insertion loss of 1 dB and has a phase balance of ±2° and amplitude of ±1 dB. The compact housing measures 1.25" x 1.38" x 0.5" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Type: | 2 Way |
| Frequency Range (GHz): | 0.01 to 1 |
| Frequency Min (GHz): | 0.01 |
| Frequency Max (GHz): | 1 |
| Isolation (dB): | 20 dB Typ, 18 dB Min |
| Insertion Loss (dB): | 1 dB Typ (Above 3 dB Theoretical) |
| VSWR (In/Out): | 1.5:1 Max |
| Amplitude Balance: | ±1 dB Max |
| Phase Balance: | ±2° Typ |
| Connectors: | SMA Female |
| Size: | 1.25" x 1.38" x 0.5" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | UP to 90%, NON-CONDENSING |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
