PD-10M1G-4-SFF Active
4 Way 0° Power Divider
Additional Documents

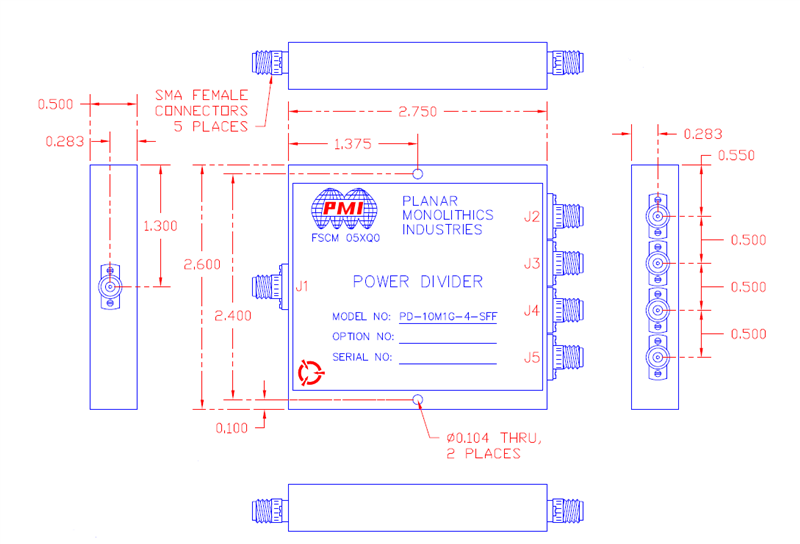

Quantic PMI Model PD-10M1G-4-SFF is a 0.01 to 1 GHz, 4 Way 0° Power Divider that has a insertion loss of 1.5 dB and has a phase balance of ±5° dB and amplitude of ±1 dB. The compact housing measures 2.75" x 2.6" x 0.5" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Type: | 4 Way |
| Frequency Range (GHz): | 0.01 to 1 |
| Frequency Min (GHz): | 0.01 |
| Frequency Max (GHz): | 1 |
| Isolation (dB): | 20 dB Typ, 16 dB Min |
| Insertion Loss (dB): | 1.5 dB Typ (Above 6 dB Theoretical) |
| VSWR (In/Out): | 1.5:1 Max |
| Amplitude Balance: | ±1 dB Max |
| Phase Balance: | ±5° Typ |
| Power Handling: | 0.5 W CW (27 dBm) |
| Connectors: | SMA Female |
| Size: | 2.75" x 2.6" x 0.5" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -45 °C to +85 °C |
| Temperature (Non-Operating): | -55 °C to +100 °C |
