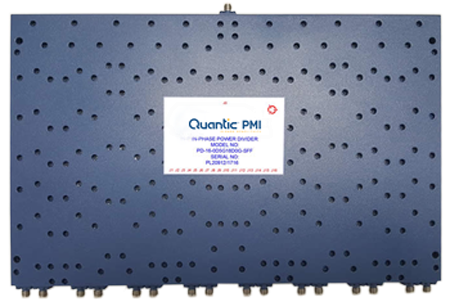

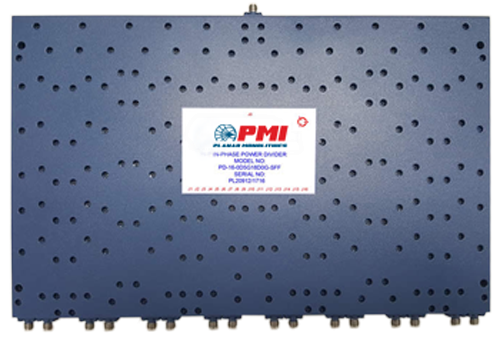

| General Parameters: |
|---|
| Status: | Active |
|---|
| Type: | 16 Way |
|---|
| Frequency Range (GHz): | 0.5 to 18 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Isolation (dB): | 12 dB Min ( 0.5 to 0.6 GHz),
14 dB Min (0.6 to 18 GHz) |
|---|
| Isolation (dB) - Measured: | 14 dB Max - Measured 15.95 dB |
|---|
| Insertion Loss (dB): | 12 dB Max |
|---|
| Insertion Loss (dB) - Measured: | 12 dB Max - Measured 10.15 dB |
|---|
| VSWR (In/Out): | 2.5:1 Typ (In/Out) @ 0.5 to 1 GHz
2.0:1 Typ (In/Out) @ 1 to 18 GHz
2.0:1 Typ (Output) |
|---|
| Amplitude Balance: | ±1.5 dB Max - Measured +1.25 dB / -0.85 dB |
|---|
| Phase Balance: | ±3º Goal, ±9° Max |
|---|
| Power Handling: | 10 W Max (Forward),
0.5 W Max (Reverse) |
|---|
| Impedance: | 50 Ohm |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 12.39" x 7.88" x 0.74",
314.6 mm x 200.2 mm x 18.9 mm |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
|---|
| Operating Humidity: | Up to 90% (Non-Condensing) |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
