PD-16-20M6G-SFF Preliminary
16 Way Power Divider

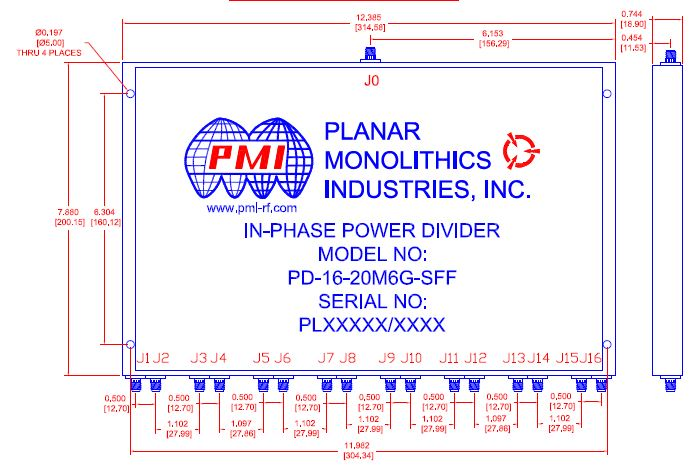

Quantic PMI Model PD-16-20M6G-SFF is a 16 Way, in-phase power divider operating from 0.02 to 6 GHz that offers an insertion loss of 16 dB maximum, over 9 dB of isolation with a phase balance is ±10° maximum and the amplitude balance is ±3 dB maximum. Housing size is 7.88" x 12.39" x 0.74" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 16 Way |
| Frequency Range (GHz): | 0.02 to 6 |
| Frequency Min (GHz): | 0.02 |
| Frequency Max (GHz): | 6 |
| Isolation (dB): | 9 dB Min |
| Insertion Loss (dB): | 16 dB Max (Above 12 dB Theoretical Loss) |
| VSWR (In/Out): | 2.0:1 Max |
| Amplitude Balance: | ±3 dB Max |
| Phase Balance: | ±10° Max |
| Power Handling: | 1 W Max |
| Connectors: | SMA Female |
| Size: | 7.88" x 12.39" x 0.74" 200.2 mm x 314.6 mm x 18.9 mm |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | UP to 90%, NON-CONDENSING |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 1070 COND. A |
