PD4-500M7G-TEE-SMPM Active
1 to 4 Way Power Divider

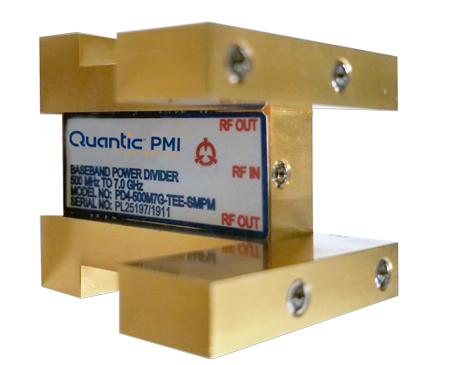

Quantic PMI Model PD4-500M7G-TEE-SMPM is a 1 to 4 Power Divider featuring low insertion loss with a frequency range of 1 to 4.4 GHz. This unique design features several mounting and orientation configurations in one package that measures 1.75" x 2.18" x 1.50" with SMPM male connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Type: | 4 Way |
| Frequency Range (GHz): | 1 to 4.4 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 4.4 |
| Isolation (dB): | >12 dB |
| Insertion Loss (dB): | <8.5 dB |
| VSWR (In/Out): | 2:1 Max |
| Amplitude Balance: | ±0.3 dB Typ |
| Absolute Max RF Power (Survival): | 20 W CW |
| Connectors: | SMPM Male |
| Size: | 1.75" x 2.18" x 1.50" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Non-Operating): | -40 °C to +85 °C |
| Humidity: | MIL-STD-810, 0 to 95% Non-Condensing |
| Shock: | MIL-STD-810, 516.6 Compliant, 20G, 11 ms Duration |
| Vibration: | MIL-STD-810, Method 515, Fig. 3 (Non-Op) |
| Altitude: | MIL-STD-810, 15, 000 ft. |
