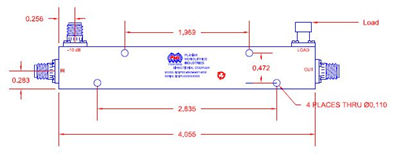

| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 0.5 to 4.5 GHz |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 4.5 |
|---|
| Coupling (dB): | 6 ± 0.5 MAX |
|---|
| Directivity (dB): | 18 MIN |
|---|
| Insertion Loss (dB): | 0.8 dB MAX (EXCLUDING COUPLING LOSS 1.26 dB) |
|---|
| VSWR: | PRIMARY: 1.3:1 MAX
SECONDARY: 1.3:1 MAX |
|---|
| Power Handling: | INCIDENT: 30 WATTS MAX
REFLECTED: 2 WATTS MAX |
|---|
| Impedance: | 50 OHMs |
|---|
| Coupling Sensitivity: | ±0.8 dB MAX |
|---|
| RF Connectors: | SMA Female |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -45°C to +85°C |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. B |
|---|
