PDC-0R46G-30C-SFF
Preliminary
Directional Coupler
Quantic PMI Model PDC-0R46G-30C-SFF is a 0.4 to 6 GHz directional coupler with a coupling of 30 ± 1.0 dB Max; directivity of ≥12 dB; ≤0.5 dB (Excluding Coupling Loss 0.01 dB) and a VSWR of 1.30:1. Package size is 6.0" x 0.73' x 0.5" with SMA (F) connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 0.4 to 6 GHz |
|---|
| Frequency Min (GHz): | 0.4 |
|---|
| Frequency Max (GHz): | 6 |
|---|
| Coupling (dB): | 30 ± 1.0 Max |
|---|
| Directivity (dB): | 12 Min |
|---|
| Insertion Loss (dB): | 0.5 dB Max (Excluding Coupling Loss 0.01 dB) |
|---|
| VSWR: | Primary 1.30:1 Max
Secondary 1.30:1 Max |
|---|
| Power Handling: | Incident 50 W Max
Reflected 50 W Max |
|---|
| Impedance: | 50 Ohm |
|---|
| Coupling Sensitivity: | ±1.5 dB Max |
|---|
| RF Connectors: | SMA Female |
|---|

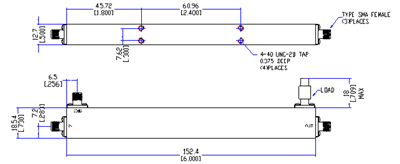

| Size: | 6.0" x 0.73' x 0.5" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -20 °C to +65 °C |
|---|
| Humidity: | Up to 95%, Non- Condensing |
|---|
