PDC-10G11G-20-50W-SFF
Preliminary

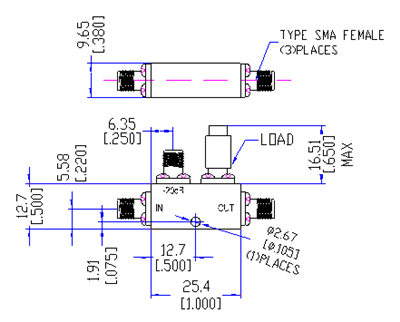

Directional Coupler
Quantic PMI Model PDC-10G11G-20-50W-SFF is a 10 to 11 GHz directional coupler with a coupling of 20 ± 0.5 dB Max; directivity of 15 dB Min; an insertion loss of 0.5 dB (excluding coupling loss of 0.04 dB) and a VSWR of 1.40:1. Outfitted with SMA (F) connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 10 to 11 GHz |
|---|
| Frequency Min (GHz): | 10 |
|---|
| Frequency Max (GHz): | 11 |
|---|
| Coupling (dB): | 20 ± 0.5 Max |
|---|
| Directivity (dB): | 15 Min |
|---|
| Insertion Loss (dB): | 0.5 dB Max (Excl. Coupling Loss 0.04 dB) |
|---|
| VSWR: | Primary 1.40:1 Max
Secondary 1.40:1 Max |
|---|
| Power Handling: | Incident 50 W Max
Reflected 2 W Max |
|---|
| Impedance: | 50 Ohm |
|---|
| Coupling Sensitivity: | ±0.5 dB Max |
|---|
| RF Connectors: | SMA - Female |
|---|
| Weight: | 30 g |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 °C to +85 °C |
|---|
| Humidity: | Up to 95%, Non-Condensing |
|---|
