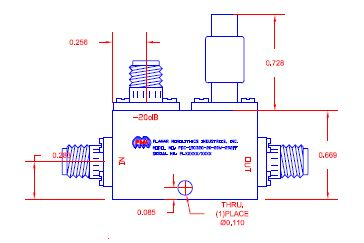

PDC-15G32G-20-20W-292FF Preliminary

PDC-15G32G-20-20W-292FF
Product Feature

PMI model PDC-15G32G-20-20W-292FF is a directional coupler that has an operating frequency of 15.0 to 32.0 GHz. This model features low VSWR, high directivity, broadband and compact size.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 15 TO 32 GHz
Frequency Min (GHz): 15
Frequency Max (GHz): 32
Coupling (dB): 20 ±1 Max
Directivity (dB): 15 Min
VSWR: PRIMARY 1.6:1 Max
SECONDARY 1.6:1 Max
Power Handling: INCIDENT LESS THAN OR EQUAL TO 20 WATT
REFLECTED LESS THAN OR EQUAL TO 1 WATT
Impedance: 50 OHMs
Coupling Sensitivity: ±1.0 dB Max
RF Connectors: 2.92mm Female
Finish: Painted Blue
Weight: 30g
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55°C TO +85°C
Humidity: UP TD 95%, NON-CONDENSING
