PDC-1G40G-30-292FF-20W Preliminary
PMI Model PDC-1G40G-30-292FF-20W is a 1 to 40 GHz directional coupler that features a directivity of 6 dB minimum; coupling of 30 ± 1 dB maximum; insertion loss of 3.3 dB; coupling sensitivity of ±1.6 dB maximum and 2 W (Foward) power handling. Package size is 5.748" x 0.669" x 0.433" with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 1 to 40 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 40 |
| Coupling (dB): | 30 ±1 dB Max |
| Directivity (dB): | 6 dB Min |
| Insertion Loss (dB): | 3.3 dB Max (Exel. Coupling Loss 0.01dB) |
| VSWR: | Primary - 1.7:1 Max Secondary - 1.7:1 Max |
| Power Handling: | 20 W (Forward Power) |
| Coupling Sensitivity: | ±1.6 dB Max |
| RF Connectors: | 2.92mm (Female) |

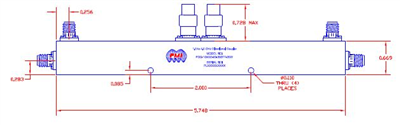

| Size: | 5.748" x 0.669" x 0.433" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +70 °C |
| Humidity: | 95% RH @ 40°C |
