PDC-1G4G-30C-NFF
Preliminary
Model Number PDC-1G4G-30C-NFF is a 1.0 to 4.0 GHz Directional Coupler having a 30 dB ±1.0 dB coupling factor and 17 dB minimum directivity.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 1 to 4 GHz |
|---|
| Frequency Min (GHz): | 1 |
|---|
| Frequency Max (GHz): | 4 |
|---|
| Coupling (dB): | 30 |
|---|
| Directivity (dB): | 17 min. |
|---|
| Insertion Loss (dB): | 0.3 dB max. (Excluding coupling loss 0.04 dB) |
|---|
| VSWR: | Primary: 1.25:1 max., Secondary: 1.25:1 max. |
|---|
| Power Handling: | Incident: 400 W max., Reflected: 50 W max. |
|---|
| Impedance: | 50 Ohms |
|---|
| Coupling Factor: | 30 dB±1.0 dB max. |
|---|
| RF Connectors: | N Type (F) |
|---|

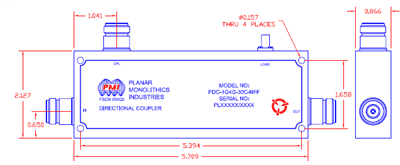

| Size: | 5.709 x 2.127 x 0.866 Inches |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Humidity: | Up to 95%, Non-Condensing |
|---|
