PDC-1G50G-20C-24FF
Preliminary
Directional Coupler

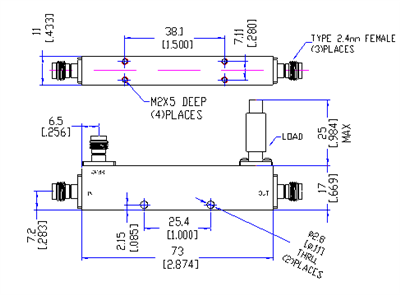

Quantic PMI Model PDC-1G50G-20C-24FF is a directional coupler that has an operating frequency of 1 to 50 GHz. This model features low VSWR and high directivity. Package size is 2.874" x 0.669" x 0.433" with 2.4 mm female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 1 to 50 |
|---|
| Frequency Min (GHz): | 1 |
|---|
| Frequency Max (GHz): | 50 |
|---|
| Coupling (dB): | 20 ± 1 Max |
|---|
| Directivity (dB): | 8 Min |
|---|
| Insertion Loss (dB): | 2 dB Max
(Excluding coupling loss of 0.04 dB) |
|---|
| VSWR: | Primary: 1.7:1 Max
Secondary: 1.9:1 Max |
|---|
| Power Handling: | Incident: 20 W Max
Reflected: 1 W Max |
|---|
| Coupling Sensitivity: | ± 1.5 dB Max |
|---|
| RF Connectors: | 2.4mm (F) |
|---|
| Finish: | Painted Blue |
|---|
| Weight: | 60 g |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 °C to +85 °C |
|---|
| Humidity: | Up to 95%
Non-Condensing |
|---|
