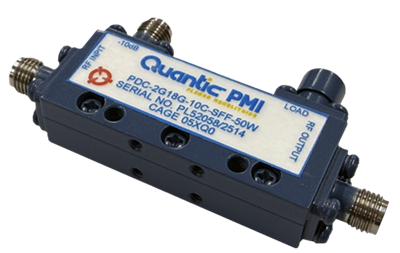

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 2 to 18 GHz |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Coupling (dB): | 10 ± 0.7 Max |
|---|
| Directivity (dB): | 15 Min |
|---|
| Insertion Loss (dB): | 0.7 dB Max (Excluding Coupling Loss 0.46 dB) |
|---|
| VSWR: | Primary: 1.4:1 Max
Secondary: 1.4:1 Max |
|---|
| Power Handling: | Incident: 50 W CW Max
Reflected: 2 W CW Max |
|---|
| Impedance: | 50 Ohm |
|---|
| Coupling Sensitivity: | ±0.7 dB Max |
|---|
| RF Connectors: | SMA (F) |
|---|
| Size: | 1.69" x 0.67" x 0.43" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | Up to 95%, Non-condensing |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
