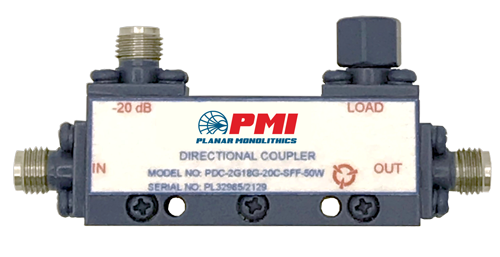

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range: | 2.0 to 18.0 GHz |
|---|
| Frequency Min: | 2.0 GHz |
|---|
| Frequency Max: | 18.0 GHz |
|---|
| Coupling: | 20 ± 0.7 dB Max |
|---|
| Directivity: | 15 dB Min |
|---|
| Insertion Loss: | 0.7 dB Max (Excluding Coupling Loss 0.04 dB) |
|---|
| VSWR: | Primary: 1.40:1 Max
Secondary: 1.40:1 Max |
|---|
| Power Handling: | Incident: 50 W Max
Reflected: 2 W Max |
|---|
| RF Connectors: | SMA (F) |
|---|
| Size: | 1.693" x 0.669" x 0.433" |
|---|
| Finish: | Painted Blue |
|---|
| Impedance: | 50 Ohms |
|---|
| Coupling Factor: | 20 ± 0.7 dB Max |
|---|
| Coupling Sensitivity: | ±0.7 dB Max |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | Up to 95%, Non-Condensing (Operating) |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
