General Parameters: |
Status: | Preliminary |
Frequency Range: | 2.0 to 8.0 GHz |
Frequency Min: | 2 GHz |
Frequency Max: | 8 GHz |
Coupling: | 10 dB max. ±0.5 dB |
Directivity: | 20 dB min. |
Insertion Loss: | 0.5 dB max.(Excluding Coupling Loss 0.46 dB) |
VSWR: | 1.2:1 max. |
Power Handling: | Average: 50 W max., Peak: 1kW max |
RF Connectors: | SMA (F) x 3 |

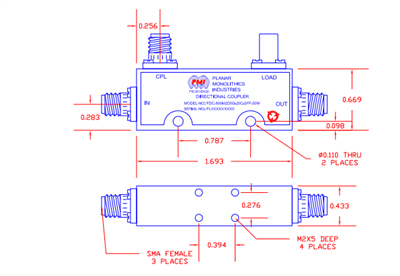

Size: | 1.693 x 0.669 x 0.433 Inches |
Finish: | Painted Blue |
Impedance: | 50 Ohms |
Coupling Sensitivity: | ±0.7 dB max |
Environmental Ratings: |
Operating Temperature: | -55ºC to +85 ºC |
Non-Operating Temperature: | -65 ºC to +125 ºC |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
