| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 0.4 to 0.5 GHz |
|---|
| Frequency Min (GHz): | 0.4 |
|---|
| Frequency Max (GHz): | 0.5 |
|---|
| Coupling (dB): | 20 ±1.0 |
|---|
| Directivity (dB): | 20 min. |
|---|
| Insertion Loss (dB): | <= 0.4 dB (excluding coupled power) |
|---|
| VSWR: | <= 1.20:1 |
|---|
| Power Handling: | Average <= 30 Watts peak <= 1 kW |
|---|
| Impedance: | 50 Ohms |
|---|
| Frequency Sensitivity: | <= ±0.7 dB |
|---|
| RF Connectors: | SMA female (3) |
|---|

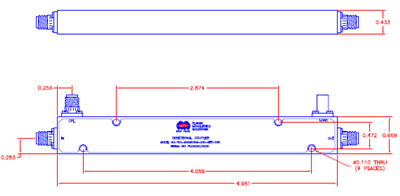

| Size: | 4.961 x 0.669 x 0.433 Inches |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +70 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +100 ºC |
|---|
| Humidity: | Up to 90 % non condensing |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
