PDC-7984-30-50W-SMA Preliminary

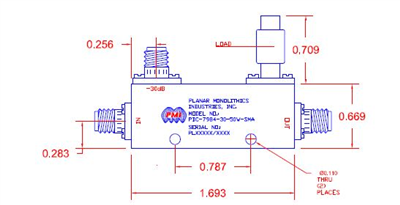

PMI Model PDC-7984-30-50W-SMA is a directional coupler that has an operating frequency of 7.9 to 8.4 GHz which features low VSWR, high directivity, and broadband frequency coverage. Package size is 1.693" x 0.669" x 0.433" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 7.9 to 8.4 |
| Frequency Min (GHz): | 7.9 |
| Frequency Max (GHz): | 8.4 |
| Coupling (dB): | 30 ± 0.5 dB Max |
| Directivity (dB): | 18 dB Min |
| Insertion Loss (dB): | 0.4 dB Max (Excluding coupling loss 0.01dB) |
| VSWR: | Primary - 1.2:1 Max Secondary - 1.2:1 Max |
| Power Handling: | Incident 50 W Max Reflected 2 W Max |
| Impedance: | 50 Ohm |
| Coupling Sensitivity: | ±0.5 dB Max |
| RF Connectors: | SMA Female |
| Size: | 1.693" x 0.669" x 0.433" |
| Finish: | Painted Blue |
| Weight: | 30 g |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Humidity: | Up to 95%, Non-Condensing |
