PDC-7G12D4G-20-3KW-SMF Active

Directional Coupler

PDC-7G12D4G-20-3KW-SMF
Product Feature

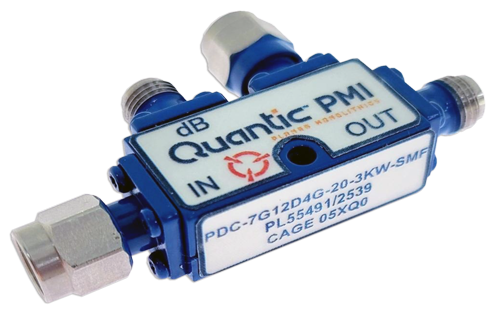

Quantic PMI Model PDC-7G12D4G-20-3KW-SMF is a 20 dB directional coupler that operates within the 7 to 12.4 GHz frequency range that features 0.4 dB insertion loss and up to 3 kW peak power handling. Package size measures 1.0" x 0.5" x 0.38" and has SMA connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 7 to 12.4
Frequency Min (GHz): 7.0
Frequency Max (GHz): 12.4
Coupling (dB): 20 ± 1.25 dB
Directivity (dB): 17 dB Min
Insertion Loss (dB): 0.4 dB Max
VSWR: 1.3:1 Max
Power Handling: 50 W CW
3 kW Max (1 µs PW, 0.1% DC)
RF Connectors: Input: SMA Male
Output & Coupled Port: SMA Female
Size: 1.0" x 0.5" x 0.38"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: 0 ˚C to +65 ˚C
Non-Operating Temperature: -40 ˚C to +70 ˚C
Humidity: Up to 95% (Condensing)
Shock: 50 g's peak half-sinewave
6 ms duration
9.2 fps velocity change
Vibration: See product feature for details.
