PDC-800M2D5G-10C-NFF-60W * Active
Directional Coupler
Buy Now
Additional Documents
- Product Feature
- Test Report - 8/3/15
- S-Parameters
- PL13126 - Unit Data
- PL13127 - Unit Data
- PL13128 - Unit Data
- PL13129 - Unit Data
- PL13130 - Unit Data
- PL13131 - Unit Data
- PL13132 - Unit Data
- PL13133 - Unit Data
- PL13134 - Unit Data
- PL13135 - Unit Data
- PL23538 - Unit Data
- PL23539 - Unit Data
- PL23540 - Unit Data
- PL23541 - Unit Data
- PL23542 - Unit Data
- PL23543 - Unit Data
- PL23544 - Unit Data
- PL23545 - Unit Data
- PL23546 - Unit Data
- PL23547 - Unit Data
- PL23548 - Unit Data
- PL92134 - Unit Data
- PL23566 - Unit Data
- PL23567 - Unit Data
- PL23568 - Unit Data
- PL23569 - Unit Data
- PL23570 - Unit Data
- PL23571 - Unit Data
- PL23572 - Unit Data
- PL23573 - Unit Data
- PL23574 - Unit Data
- PL23551 - Unit Data
- PL23552 - Unit Data
- PL23553 - Unit Data
- PL23554 - Unit Data
- PL23555 - Unit Data
- PL23556 - Unit Data
- PL23557 - Unit Data
- PL23558 - Unit Data
- PL23559 - Unit Data
- PL23560 - Unit Data
- PL23561 - Unit Data
- PL23562 - Unit Data
- PL23563 - Unit Data
- PL23564 - Unit Data
- PL23565 - Unit Data
- PL44325 - Unit Data
- PL44326 - Unit Data
- PL44327 - Unit Data
- PL44328 - Unit Data
- PL44329 - Unit Data
- PL44333 - Unit Data
- PL44334 - Unit Data
- PL44335 - Unit Data
- PL44336 - Unit Data
- PL44337 - Unit Data
- PL44401 - Unit Data
- PL44402 - Unit Data
- PL44403 - Unit Data
- PL44404 - Unit Data
- PL44405 - Unit Data
- PL50572 - Unit Data
- PL50573 - Unit Data
- PL50574 - Unit Data
- PL50575 - Unit Data
- PL50576 - Unit Data
- PL92107 - Unit Data
- PL92108 - Unit Data
- PL92109 - Unit Data
- PL92110 - Unit Data
- PL92111 - Unit Data
- PL92288 - Unit Data
- PL92289 - Unit Data
- PL92290 - Unit Data
- PL92291 - Unit Data

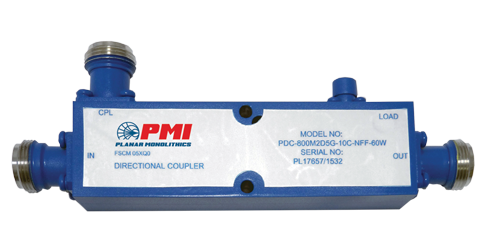

PMI Model PDC-800M2D5G-10C-NFF-60W is an 0.8 to 2.5 GHz directional coupler having a 10 dB coupling factor and 20 dB directivity with an input power of 60 W. Housing measures 3.937" x 1.103" x 0.866" with Type N female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.8 to 2.5 GHz |
| Frequency Min (GHz): | 0.8 |
| Frequency Max (GHz): | 2.5 |
| Coupling (dB): | 10 ± 0.8 |
| Directivity (dB): | 20 Min |
| Insertion Loss (dB): | <0.5 dB (Excluding Coupled Power) |
| VSWR: | <1.25:1 - Measured 1.2:1 |
| Power Handling: | Average <60 W, Peak <1 KW |
| Impedance: | 50 Ohm |
| Frequency Sensitivity: | <±0.7 dB - Measured ± 0.20 dB |
| RF Connectors: | N Female |
| Size: | 3.937" x 1.103" x 0.866" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
