PDC-8G8R5G-10-50W-SFF
Preliminary

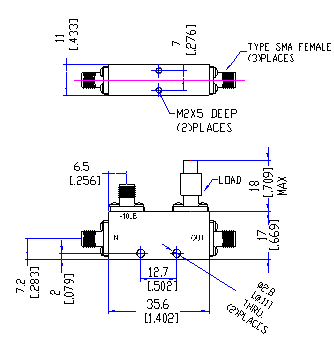

Directional Coupler
Quantic PMI Model PDC-8G8R5G-10-50W-SFF is an 8 to 8.5 GHz directional coupler with a coupling of 10 ± 0.5 dB Max; directivity of 15 dB Min; an insertion loss of 0.5 dB (excluding coupling loss of 0.46 dB) and a VSWR of 1.40:1. Outfitted with SMA (F) connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 8 to 8.5 GHz |
|---|
| Frequency Min (GHz): | 8 |
|---|
| Frequency Max (GHz): | 8.5 |
|---|
| Coupling (dB): | 10 ± 0.5 Max |
|---|
| Directivity (dB): | 15 Min |
|---|
| Insertion Loss (dB): | 0.5dB Max (Excl. Coupling Loss 0.46dB) |
|---|
| VSWR: | Primary 1.40:1 Max
Secondary 1.40:1 Max |
|---|
| Power Handling: | Incident 50Watt Max
Reflected 2Watt Max |
|---|
| Impedance: | 50 Ohms |
|---|
| Coupling Sensitivity: | ± 0.5 dB |
|---|
| RF Connectors: | SMA (F) |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55°C to +85°C |
|---|
| Humidity: | Up to 95%, Non- Condensing |
|---|
