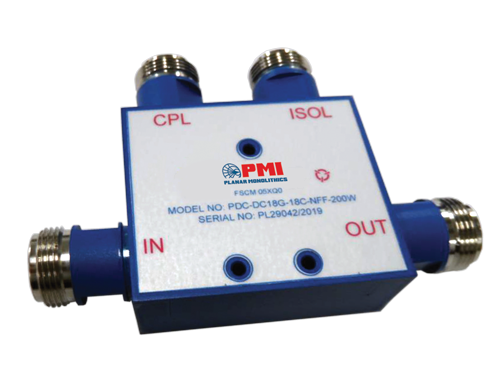

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | DC to 18 GHz |
|---|
| Frequency Min (GHz): | DC |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Coupling (dB): | 30 dB @ 18 GHz
50 dB @ 1 GHz |
|---|
| Directivity (dB): | 15 dB Min, 22 dB Typ (1 to 14 GHz)
12 dB Min, 16 dB Typ (14 to 18 GHz) |
|---|
| VSWR: | 1.2:1 Typ, 1.35:1 Max (1 to 5 GHz)
1.4:1 Typ (5 to 18 GHz) |
|---|
| Direct Line Insertion Loss: | 0.2 dB Typ, 0.4 dB Max (DC to 12 GHz)
0.35 dB Typ, 0.7 dB Max (12 to 18 GHz) |
|---|
| Average Power: | 200 W Max |
|---|
| RF Connectors: | Type N Female |
|---|
| Size: | 2.00" x 1.68 x 0.85" |
|---|
| Finish: | Painted Blue |
|---|
| Weight: | 215 g Typ |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
