PDPS-105F-6 Active
6 Bit Digital Phase Shifter
Quantic PMI Model PDPS-105F-6 Option AL is a 6 Bit Phase Shifter with a speed of 300 ns maximum, (100 ns typical). Designed to operate at 1.5 GHz, with a VSWR of 2:1, an insertion loss of 9 dB maximum, (8 dB Typical) and a phase accuracy of ±6° maximum, 3° at 3 GHz. Housing measures 3.0" x 2.7" x 0.5" with a 15 Pin subminiature D connector for power/control and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 1.5 |
| Frequency Min (GHz): | 1.5 |
| Frequency Max (GHz): | 1.5 |
| Insertion Loss (dB): | 9 dB Max |
| Insertion Loss - Measured (dB): | 9 dB Max, 8 dB Typ |
| Phase Shift Range: | 354.2° |
| Switching Speed: | 300 ns Max, 100 ns Typ |
| Phase Accuracy: | ±6° Max, 3° Typ |
| Phase States: | 5.6°, 11.2°, 22.4°, 45°, 90°, 180° |
| VSWR: | 2.0:1 Max |
| Power Supply: | -15 VDC @ 50 mA Max |
| No. Control Bits: | 6 Bit TTL |
| Control & Power Connector: | 15 Pin Micro-D |
| RF Connectors: | SMA Female |

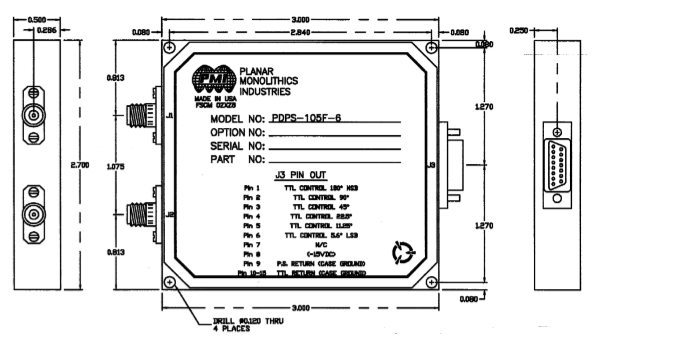

| Size: | 3.0" x 2.7" x 0.5" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +100 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
