PDPS-3F-6-AL Active

6 Bit Digital Phase Shifter

PDPS-3F-6-AL
Product Feature

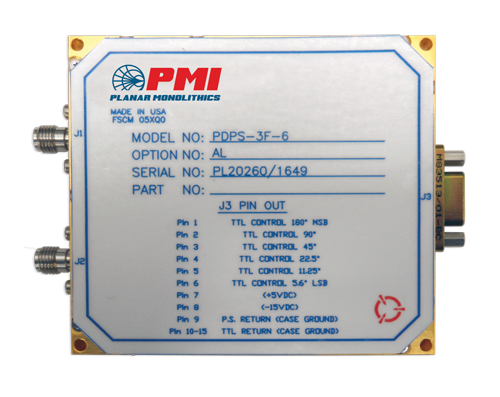

Quantic PMI Model PDPS-3F-6 Option AL is a 6 Bit Digital Phase Shifter with a speed of 300 ns maximum (100 ns typical), designed to operate over the frequency of 2.3 to 3.8 GHz with a typical insertion loss of 9 dB, a phase accuracy of ±6° maximum, 3° Typical at 3 GHz and a switching speed of 70 ns. Housing measures 3.0" x 2.7" x 0.53" with a 15 Pin subminiature D connector for power/control and SMA female connectors.


Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2.75 to 3.25
Frequency Min (GHz): 2.75 (Functional from 2.3)
Frequency Max (GHz): 3.25 (Functional up to 3.8)
Insertion Loss (dB): 9 dB Typ
Insertion Loss - Measured (dB): 9 dB Typ, 10 dB Max
Measured ALL TTL "1":
3.21 dB @ 2.75 GHz,
3.20 dB @ 3 GHz,
3.20 dB @ 3.25 GHz,
Measured ALL TTL "0":
3.79 dB @ 2.75 GHz,
3.84 dB @ 3 GHz,
3.91 dB @ 3.25 GHz
Phase Shift Range: 354.2°
Switching Speed: 300 ns Max, 100 ns Typ
Phase Accuracy: ±6° Max, 3° Typ @ 3 GHz
Phase States: 5.6°, 11.2°, 22.4°, 45°, 90°, 180°
VSWR: 2.0:1 - Measured Input: 1.30:1 / Output: 1.44:1
Power Supply: +5 VDC @ 70 mA Typ, 100 mA Max
-15 VDC @ 70 mA Typ, 100 mA Max
No. Control Bits: 6 Bit TTL
Control & Power Connector: 15 Pin Micro-D
RF Connectors: SMA Female
Size: 3.0" x 2.7" x 0.53"
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 ºC to +85 ºC
Temperature (Storage): -65 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
