PDPS-5F-6 Preliminary

6 Bit Digital Phase Shifter

PDPS-5F-6
Product Feature
Additional Documents

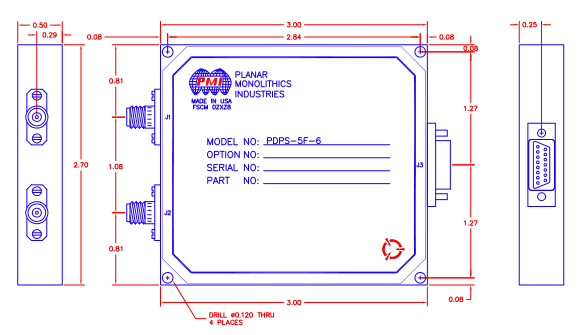

Quantic PMI Model PDPS-5F-6 is a 6 Bit Phase Shifter with a peed of 300 ns maximum, (100 ns typical) designed to operate at a frequency of 5.4 to 5.9 GHz with a VSWR of 2:1, an Insertion Loss of 6.5 dB maximum and a phase accuracy of ± 6˚ maximum, 3˚ typical. Housing measures 3.0" x 2.7" x 0.5" with a 15 Pin subminiature D connector for power/control and SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 5.4 to 5.9
Frequency Min (GHz): 5.4
Frequency Max (GHz): 5.9
Insertion Loss (dB): 6.5 dB Max
Phase Shift Range: 354.2°
Switching Speed: 300 ns Max, 100 ns Typ
Phase Accuracy: ±6° Max, 3° Typ
Phase States: 5.6°, 11.2°, 22.4°, 45°, 90°, 180°
VSWR: 2.0:1 Max
Power Supply: +5 VDC @ 50 mA Max,
-15 VDC @ 50 mA Max
No. Control Bits: 6 Bit TTL
Control & Power Connector: 15 Pin Subminiature D (Male)
RF Connectors: SMA Female
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 ºC to +85 ºC
Temperature (Storage): -65 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
