PDRO-115625M-13DBM-SFF
Phase Locked Oscillators (PLOs)

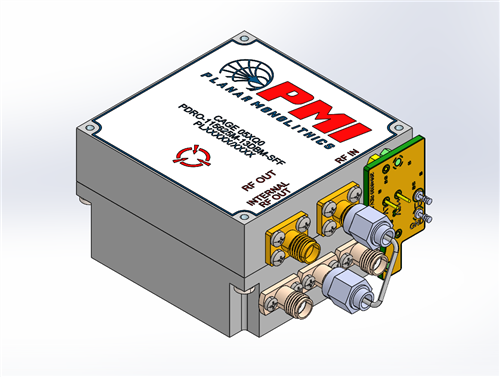

PMI Model PDRO-115625M-13DBM-SFF is a Phase Locked Oscillator with an output frequency of 11.5625 GHz and a minimum output level of 13 dBm. The package size is 2.25" x 2.25" x 1.41" with SMA Female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Output Frequency - fo (GHz): | 11.5625 |
| Load VSWR: | 1:1.5 Max |
| Spurious: | -70 dBc Max |
| Phase Noise: | -108 dBc/Hz Max @ 1 kHz -115 dBc/Hz Max @ 10 kHz-115 dBc/Hz Max @ 100 kHz-130 dBc/Hz Max @ 1 MHz |
| Harmonics: | -20 dBc Max |
| Reference Phase Noise (SSB): | -115 dBc/Hz Max @ 10 Hz-140 dBc/Hz Max @ 100 Hz-155 dBc/Hz Max @ 1000 Hz-165 dBc/Hz Max @ 10 kHz |
| Reference Frequency: | 10 MHz (sinewave) |
| Output Level: | 13 dBm Min |
| Lock Detector: | TTL High — Lock |
| Input Level: | -3 to 3 dBm |
| DC Current: | 450 mA Max |
| Supply Voltage: | +12 VDC |
| Connectors: | RF Connectors: SMA FemalePower: Thru Capacitor |
| Size: | 2.25" x 2.25" x 1.41" |
| Finish: | Silver Plated |
| Environmental Ratings: | |
| Operating Temperature: | 0 °C to +50 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Vibration: | MIL-STD-202, METHOD 204 COND. B |
| Shock: | MIL-STD-202, METHOD 213 COND. B |
| Humidity: | MIL-STD-202, METHOD 103 COND. B |
| Altitude: | MIL-STD-202, METHOD 105 COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107 COND. A |
