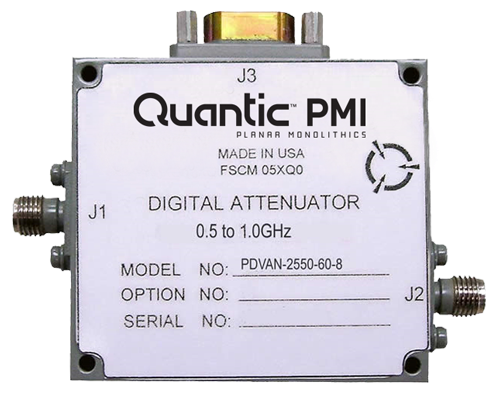

| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 0.5 to 1 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 1 |
|---|
| Attenuation Range (dB): | 60 dB |
|---|
| Attenuation Step Size - LSB (dB): | 0.25 dB |
|---|
| Attenuation Flatness (dB): | ±0.45 dB @ 10 dB,
±0.80 dB @ 20 dB,
±1.5 dB @ 40 dB,
±1.6 dB @ 60 dB |
|---|
| Insertion Loss (dB): | 2 dB Max |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Operating Input Power: | 20 dBm CW Max |
|---|
| Survival Power: | 30 dBm CW Max |
|---|
| Input Tracking: | Monotonic |
|---|
| Power Supply: | +15 VDC @ 150 mA Max
-15 VDC @ 75 mA Max |
|---|
| Digital Control: | 8 BIT TTL |
|---|
| DC Connector: | 15 Pin D-Sub Female (Mating Connector Supplied) |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 2.0" x 1.8" x 0.5" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
