8 BIT Programmable Pin Diode Attenuator

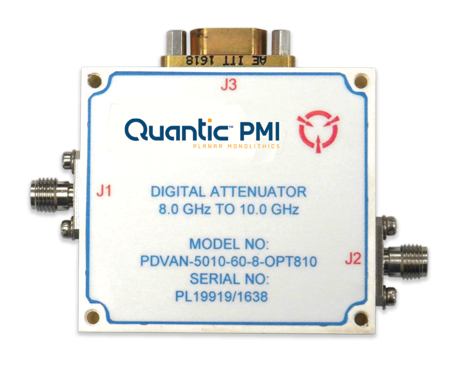

Quantic PMI Model PDVAN-5010-60-8-OPT810 is an 8-bit programmable 60 dB pin diode attenuator with step resolution as low as 0.25 dB over the frequency range of 8 to 10 GHz and has an attenuation accuracy of ±0.60 dB @ 10 dB, ±0.90 dB @ 20 dB, ±1.5 dB @ 40 dB, and ±1.6 dB @ 60 dB; maximum insertion loss of 2.7 dB; operating power rating of 20 dBm; and a maximum switching time of 500 ns. Contains SMA female connectors, and the size is 20" x 1.80" x 0.50".
Product Specifications
| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 8 to 10 |
|---|
| Frequency Min (GHz): | 8 |
|---|
| Frequency Max (GHz): | 10 |
|---|
| Attenuation Range (dB): | 60 dB |
|---|
| Attenuation Flatness (dB): | ±0.60 dB @ 10 dB - Measured ±0.19 dB
±0.90 dB @ 20 dB - Measured ±0.58 dB
±1.5 dB @ 40 dB - Measured ±1.14 dB
±1.6 dB @ 60 dB - Measured ±1.71 dB |
|---|
| Insertion Loss (dB): | 2.7 dB Max |
|---|
| Insertion Loss (Measured): | 2.7 dB Max - Measured 2 dB |
|---|
| VSWR: | 2.0:1 Max - Measured 1.6:1 |
|---|
| Operating Input Power: | 20 dBm |
|---|
| Survival Power: | 30 dBm |
|---|
| Monotonicity: | Guaranteed |
|---|
| Power Supply: | +12 V to +15 V @ 150 mA Max - Measured 40 mA
-12 V to -15 V @ 75 mA Max - Measured 0 mA |
|---|
| Digital Control: | 8 BIT Positive True, TTL |
|---|
| DC Connector: | 15 Pin D-Sub Female (Mating Connector Supplied) |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 20" x 1.80" x 0.50" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D |
|---|
