| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 8 to 12 |
|---|
| Frequency Min (GHz): | 8 |
|---|
| Frequency Max (GHz): | 12 |
|---|
| Attenuation Range (dB): | 60 dB (Mean) |
|---|
| Attenuation Flatness (dB): | ±0.7 dB @ 10 dB
±1 dB @ 20 dB
±1.5 dB @ 40 dB
±1.6 dB @ 60 dB |
|---|
| Insertion Loss (dB): | 2.8 dB Max |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Monotonicity: | Guaranteed |
|---|
| Switching Time: | 500 ns Max |
|---|
| Power Supply: | +12 to +15 VDC @ 150 mA Max
-12 to -15 VDC @75 mA Max |
|---|
| PWR/CTL Connectors: | 15 Pin Micro-D-Female (Mating Connector Supplied) |
|---|
| Digital Control: | 8 BIT Positive True, TTL |
|---|
| Connectors: | SMA Female - removed |
|---|

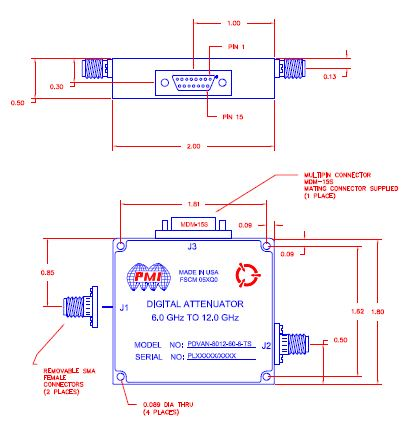

| Size: | 2.0" x 1.8" x 0.5" |
|---|
| Finish: | Blue Epoxy Polyimide Coating IAW MIL-C-22750 Type I over Epoxy Polyimide Primer IAW MIL-P-23377, Type I, Class 1 or 3. |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202F, METHOD 107 |
|---|
