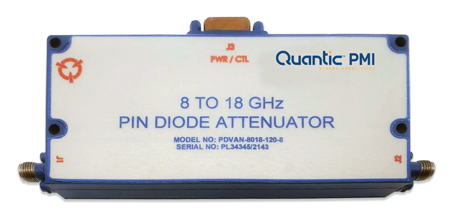

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range: | 8.0 to 18.0 GHz |
|---|
| Frequency Min: | 8 GHz |
|---|
| Frequency Max: | 18 GHz |
|---|
| Insertion Loss: | 8.5 dB max |
|---|
| Attenuation Range: | 120 dB |
|---|
| Digital Control: | 8-BIT Binary TTL |
|---|
| LSB: | 1.0 dB |
|---|
| VSWR: | 2.0:1 Max at 0 dB Attenuation |
|---|
| Operating Input Power: | +20 dBm CW Min |
|---|
| Survival Power: | +30 dBm CW Max |
|---|
| Attenuation Flatness: | ±0.8 dB @ 10 dB Attenuation,
±1.1dB @ 20 dB Attenuation,
±1.5 dB @ 40 dB Attenuation,
±1.6 dB @ 60 dB Attenuation,
±2.5 dB @ 80 dB Attenuation,
±3.2 dB @ 120 dB Attenuation |
|---|
| Attenuation Accuracy: | ±1.0 dB @ 0 to 50 dB Attenuation,
±1.5 dB @ 50 to 60 dB Attenuation,
±2.0 dB @ 60 to 80 dB Attenuation,
±2.5 dB @ 80 to 120 dB Attenuation |
|---|
| Swiching Time: | 3 µs Max |
|---|
| Input Tracking: | Monotonic |
|---|
| Power Supply: | +12 V to +15 V @ 250 mA Max,
-12 V to -15 V @ 100 mA Max |
|---|
| Finish: | Painted Blue |
|---|
| Connectors: | SMA (F) |
|---|
| DC Connector: | 15 Pin Micro-D Male (Mating Connector Supplied) |
|---|
| Size: | 2.00" x 1.80" x 0.50" |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
