| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 8 to 12.4 |
|---|
| Frequency Min (GHz): | 8 |
|---|
| Frequency Max (GHz): | 12.4 |
|---|
| Attenuation Range (dB): | 64 dB |
|---|
| Attenuation Step Size - LSB (dB): | 0.25 dB |
|---|
| Attenuation Flatness (dB): | ±1 dB @ 10 dB,
±1.25 dB @ 20 dB,
±1.75 dB @ 40 dB,
±2.5 dB @ 60 dB |
|---|
| Insertion Loss (dB): | 3 dB Typ |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Operating Input Power: | 20 dBm |
|---|
| Survival Power: | 30 dBm |
|---|
| Monotonicity: | Guaranteed |
|---|
| Power Supply: | +12 to +15 VDC @ 50 mA Typ |
|---|
| Digital Control: | 8 BIT Positive True, TTL |
|---|
| DC Connector: | 15 Pin Micro-D-Female (Mating Connector Supplied) |
|---|
| Connectors: | SMA Female |
|---|

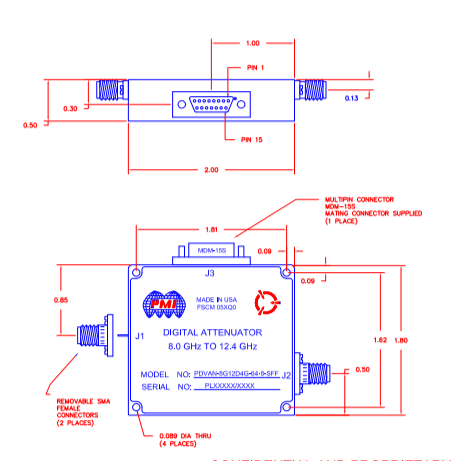

| Size: | 2" x 1.8" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
